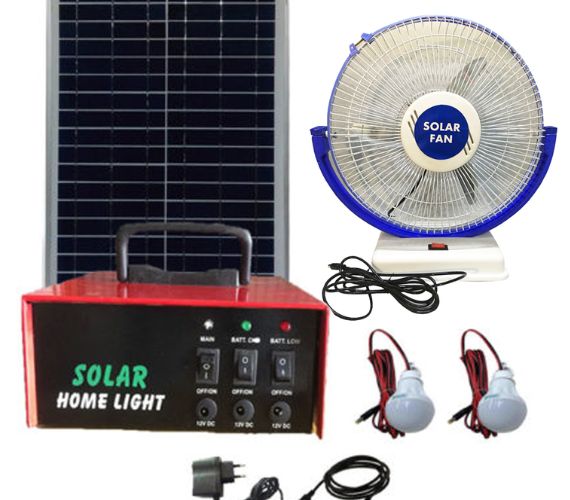

SOLAR HOME LIGHTING SYSTEM

Features

• Wall mountable

• AC 220V, output, 130W load portable UPS

• Can run cable to all locations of house

• Innovative desing of housing all components in one housing , plug & use type.

• Simple user friendly front panel display

• Low cost solution for rural home lighting emergency lighting and camping lighting .

• No hassles of cable length limitation like DC systems

• Four CFL/LED lights & cables given with system

Technical Specifications:

PV Module : Crystalline PV Modules of 12V 18Wp - 12V 74Wp

Battery: lead Acid Low Maintainence 12V 20Ah - 12V 75Ah

Charge Controller: CCU 10A, 12V/24V Auto recongnition, , Builtin indication for Battery charging, Ful Charge status. Full range protection ith High Cut Off, Low Cut off, reverse polarity temprature compensation

Mountng Structure: Powder Coated- Streel Structure

Luminary: 9w/11W CFL with operating frequency 20Khz -34Khz

MODEL - 1	MODEL - 2	MODEL - 3	MODEL - 4
PV Module :	1X 18 W	1X 37 W	2X 37W or 1X 74 W	2X 37W or 1X 74W
Lamps :	1X CFL (9W / 11W)	2X CFLs (9W / 11W)	2X CFLs (9W / 11W) 1DC Fan	4X CFLs (9W / 11W)

Other components : Control electronics, module mounting hardware, battery box, inter-connecting wires/cables, switches, etc. Operation, instrucation and maintenance manual.
